CNC TURNING CENTERS

(1) - Okuma L470M turning Center With Live Milling.
       4" bar capacity, 12 Tools, .1 seconds index time.
       30 HP, 3000 rpm., 16.53" max turn diameter,
       26.59" length. With Tailstock and Barfeed.

(1) - Okuma LU15 4 axis Lathe (dual turrets 12+8)
       Maximum turning dia. 14", maximum length 23.5"
       30hp spindle 38 - 3800 rpm, tool index time .1 seconds.
       With tailstock and barfeed.

(5) - Okuma Cadet Big Bores Lathes
       2 1/2" dia. capacity, 3500 rpm, 12 station turret.
       Max Diameter 9.84", length 19".
       All with tailstocks and barfeeds.

(1) - Okuma High speed Cadet lathe
       6000 rpm with tailstock, 1-5/8" bar capacity.
       Maximum turn dia. = 9.84" , length = 19".

(1) - AW 100 (American Way)
       1 1/16" dia. capacity (Gang style lathe).
       With 12?barfeed.

MACHINING CENTERS

(2) - Okuma Vertical Machining Centers -- MC-V4020
       20 tools, and 32 tools CAT 40.
       20 HP 8,000 rpm. Travels ~ x=40" Y = 20" Z = 20"
       2.5 second "chip to chip" index time, SMW indexer

(1) - Tree VMC 1050 - 24 tool carousel CAT 40,
       travels ~ X =40" Y =20" Z =25"
       Spindle 20hp. 0 - 8,000 rpm. SMW indexer

(1) - Enshu S400 Super Precision Vertical Machining Center
       20 tool ATC CAT40, Travels ~ X=25.6" Y=17.7" Z=18.1"
       Spindle 15hp. 0 - 8000 rpm

HONES

(1) - Sunnen Hone Model EC-3500 ,with automatic sizing,
       Diameter range .060" - 6.5"
       Spindle speed 200 - 3000 rpm.
       Stroke rate 60 - 500 spm.
       Stroke length .236" - 6.700", 5.5hp spindle.

AUTOMATICS

(2) - Hardinge AHC Chuckers (super precision).
       1 1/16" dia. capacity, 6 position turret,
       vertical slide and bar feed - very well tooled.

TURRET & HAND SCREW MACHINES

  ** All have 6 position turrets and barfeeds - very well tooled.

(2) - Warner & Swasey turret lathes
       1 1/2" dia. capacity with 12" chuck.

(4) - Hardinge hand screw machines
       1 1/16" dia. capacity,
       cross slides and taper turning to 2" long.

PUNCH PRESSES

(1) - V&O OBI 15 ton press with 2 1/2" stroke.

SUPPORT EQUIPMENT

(1) - 250W Amada production saw.

(3) - Bridgeport vertical mills, Series l - 2hp vari-speed,
        power feed,9" x 42" table.

(1) - Brown & Sharpe 10hp automatic horizontal mill.

(1) - Burke horizontal production mill.

(1) - Millport surface grinder, 6" x 18" capacity table.

(1) - Cinncinati #2 tool & cutter grinder.

(1) - Millport Gap type lathe (8" chuck).

(30) - Various types of drill presses for second operation
          work. (large tapping & power drilling)

(4) - Procunier universal tapping machines.

(1) - Yates combination disc & belt sander.

(2) - Horizontal / vertical bandsaws.

(1) - Miller wire feed welder.

(1) - Spot welder, floor model.

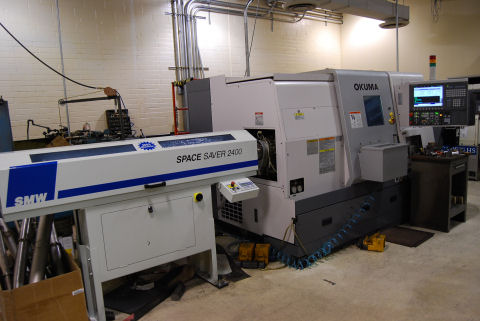

Okuma Captain L470M

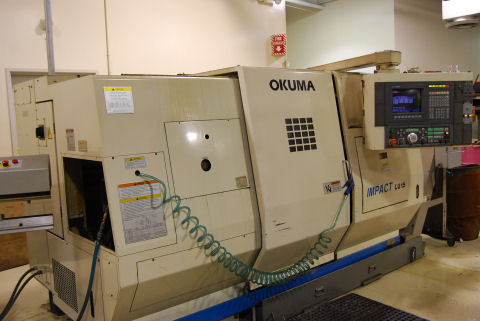

Okuma LU15 - 4 axis

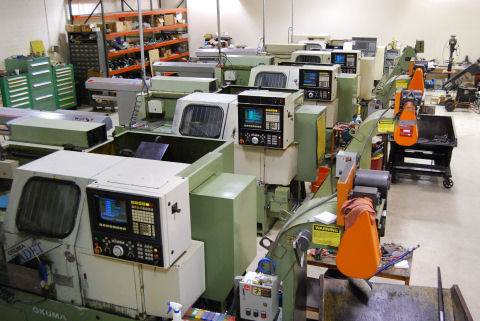

Bank of Cadet lathes(5)

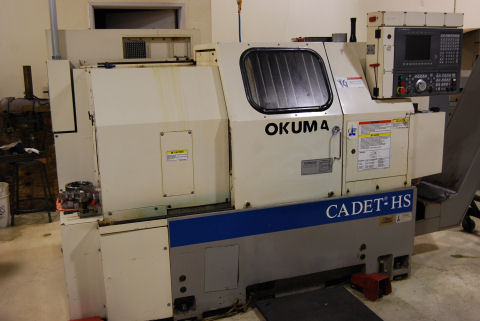

Cadet High Speed

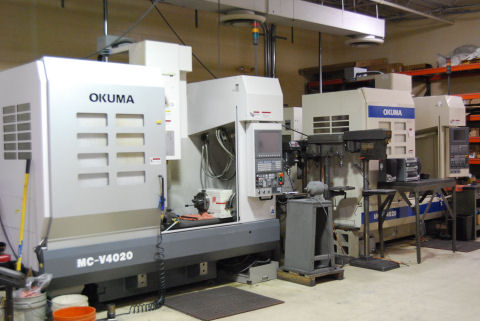

Okuma MC-V4020 Vertical Machining Centers(2)

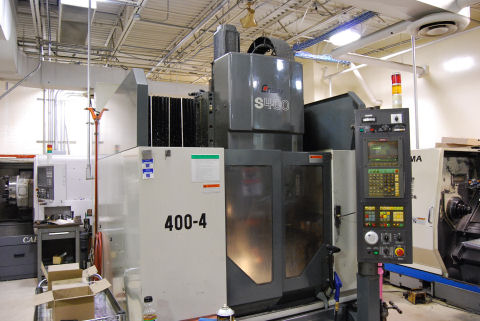

Enshu S400 Vertical Machining Center
